Hydraulic slurry pump

Model No.︰

ZZB-3"-4"

Brand Name︰

HS

Country of Origin︰

China

Minimum Order︰

1 pc

Share on:

Product Description

The hydraulic slurry pump series is developed by Hengsheng and is designed for high-pressure and high-load industrial scenarios. It is suitable for the transportation and cleaning of mud and solid particle-containing media. The products comply with CE certification (EN ISO 12100:2010 and other standards) and strictly follow safety operating specifications to ensure operational reliability and personnel safety.

Core functions

High-pressure corrosion resistance: key components are made of 316 stainless steel, which can withstand high pressure (≤160 bar) and corrosive media.

Safety protection: built-in pressure relief valve (maximum 2600 psi), automatic overpressure protection; automatic shutdown when hydraulic oil is over-temperature (>70℃).

Modular design: impellers, volutes and other components can be quickly replaced, supporting separate maintenance of vulnerable parts to reduce downtime.

Multi-scenario adaptation: BSP/NPT interface options are provided, compatible with global standards.

Applicable scenarios

Mining and construction: transportation of mud, sand, gravel, and concrete residues.

Petrochemical: cleaning of high-viscosity residues in oil tanks and pipelines.

Municipal environmental protection: sewage treatment, river dredging operations.

Industrial cleaning: removal of solid sediments inside storage tanks and reactors.

Technical parameters

Model 3" hydraulic slurry pump 4" hydraulic slurry pump
Flow range 20-30 L/min 30-40 L/min
Working pressure 120-140 bar 120-160 bar
Maximum head 30 m 26 m
Solid particle size ≤30 mm ≤40 mm
Weight 16 kg 28.5 kg
Interface standard 3" Camlock 4" Camlock





Payment Terms︰ TT / LC / DP / DA

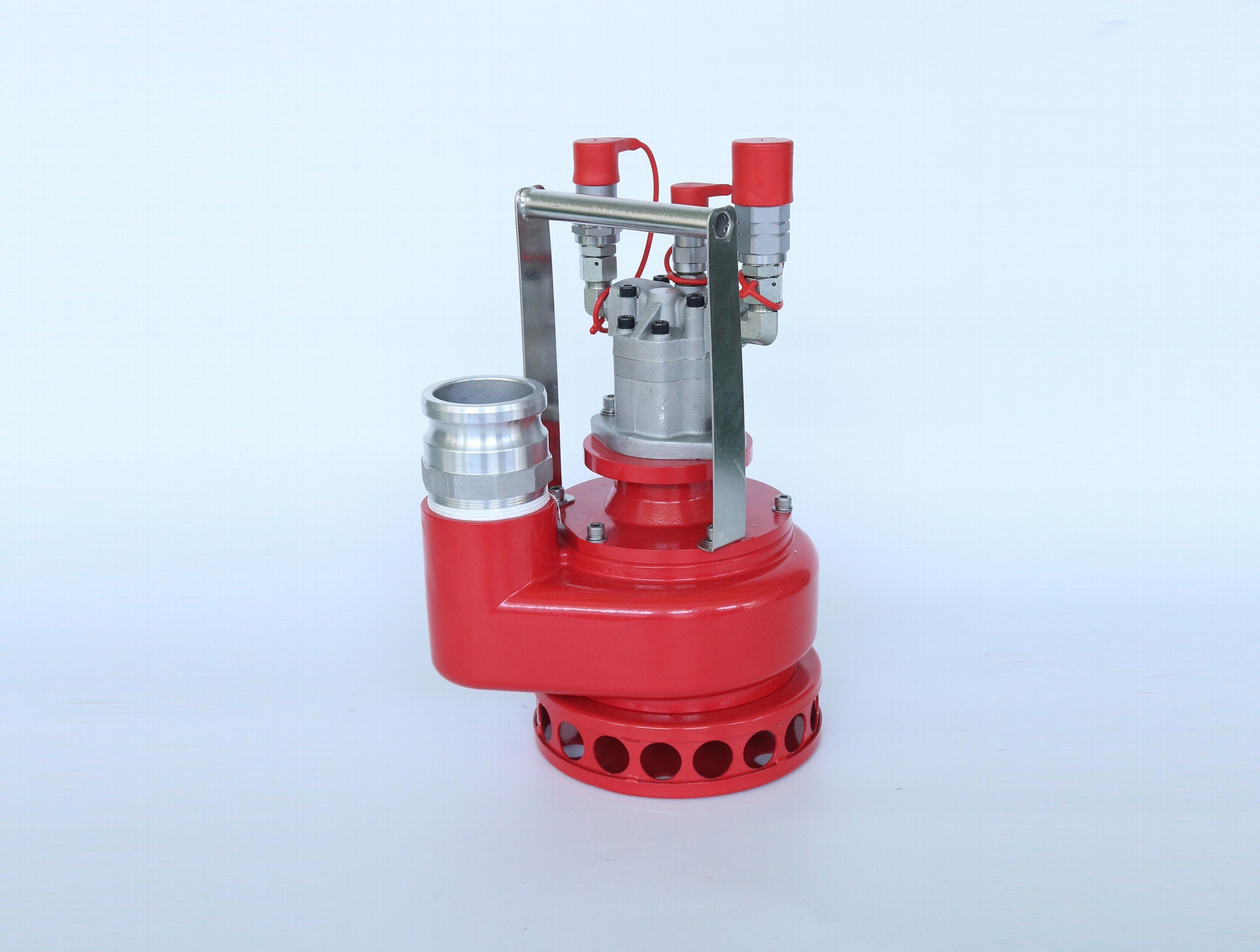

Product Image
